What Is Operating Point in Pumps? Understanding Pump Curves and System Performance

When selecting or operating a pump, many people focus only on flow rate or pressure requirements. But in reality, a pump’s performance depends on one critical factor that determines whether the system will run efficiently or waste energy—the operating point.

Understanding the operating point helps engineers, maintenance teams, and industrial buyers improve pump efficiency, reduce energy consumption, prevent premature wear, and optimize system performance.

In this guide, we explain what an operating point in pumps is, how pump curves and system curves work, why the operating point matters, and how to maintain efficient pump operation.

What Is Operating Point in Pumps?

The operating point is the actual condition where a pump works inside a pumping system.

It is defined as:

The point where the pump performance curve intersects with the system curve, determining the actual flow rate and head delivered by the pump.

This operating point decides how much liquid the pump will move and the pressure it will generate during real operation.

Even if a pump is designed for a certain flow capacity, the final performance depends on the resistance created by the piping system.

Simple Example

Imagine a pump capable of delivering 200 m³/h.

However, the connected pipeline, valves, fittings, and elevation only allow 160 m³/h.

The pump will naturally operate at the point where both conditions balance.

That balance point becomes the pump operating point.

Understanding Pump Curves

A pump curve shows how a pump performs under different operating conditions.

It usually includes:

• Flow rate
• Total head
• Efficiency
• Power consumption
• NPSH requirements

As flow increases, the available head usually decreases.

Manufacturers use pump curves to help users select the correct pump for their application.

Key Information Found on Pump Curves

Flow Rate (Q)

The volume of fluid delivered over time.

Head (H)

The energy supplied by the pump to move fluid.

Efficiency

Indicates how effectively the pump converts power into fluid movement.

Power Requirement

Motor energy required at different conditions.

What Is a System Curve?

A system curve represents the resistance generated by the piping system.

Unlike the pump curve, the system curve changes depending on:

• Pipe diameter
• Pipe length
• Valve positions
• Elevation changes
• Friction losses
• Flow demand

As flow increases, system resistance also increases.

This relationship creates the system performance line.

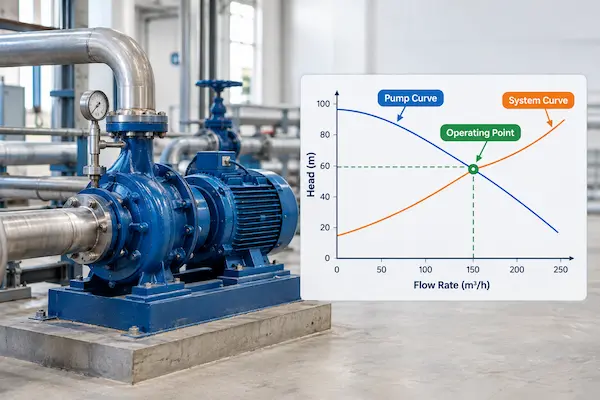

How Pump Curves and System Curves Determine Operating Point

The operating point occurs where:

• Pump output matches system demand
• Flow equals resistance
• Stable operating conditions are achieved

If conditions change, the operating point moves.

For example:

Opening a Valve

• System resistance decreases
• Flow increases
• Operating point shifts right

Closing a Valve

• Resistance increases
• Flow decreases
• Operating point shifts left

Pipe Blockage

• Increased friction
• Reduced system performance
• Lower efficiency

Because of this, the operating point is dynamic rather than fixed.

Why Operating Point Matters in Pump Systems

Operating outside the correct operating range can create performance issues.

1. Improves Pump Efficiency

Pumps operate most efficiently near their Best Efficiency Point (BEP).

Operating close to BEP reduces wasted energy.

2. Reduces Energy Consumption

Poor operating points force pumps to consume more power.

Optimized operation lowers electricity costs.

3. Extends Pump Life

Incorrect operating conditions may lead to:

• Seal damage
• Bearing wear
• Vibration
• Cavitation
• Overheating

4. Increases System Reliability

Stable operating conditions reduce unexpected shutdowns and maintenance.

What Happens When a Pump Operates Away From Its Operating Point?

Operating too far from the intended range can cause serious issues.

Excessive Flow

Possible consequences:

• Motor overload
• Reduced pressure
• Component wear

Low Flow Operation

Possible consequences:

• Heat buildup
• Internal recirculation
• Seal damage

High Resistance

Possible consequences:

• Increased pressure
• Reduced output
• Energy loss

Monitoring operating conditions helps avoid these problems.

Operating Point vs Best Efficiency Point (BEP)

Many people confuse these two concepts.

Operating Point

Actual working condition of the pump.

Best Efficiency Point (BEP)

Condition where the pump achieves maximum efficiency.

Ideally, the operating point should remain close to BEP.

This improves:

• Reliability
• Energy savings
• Equipment life

Factors That Affect Pump Operating Point

Several variables influence where the pump operates.

System Resistance

Changes in piping alter performance.

Pump Speed

Higher RPM changes flow and head.

Impeller Diameter

Larger impellers shift pump performance.

Fluid Properties

Viscosity and density affect output.

Valve Adjustment

Valve position directly impacts system curves.

How to Optimize Pump Operating Point

To maintain efficient pump performance:

Select the Right Pump

Choose based on actual operating conditions.

Monitor Flow and Pressure

Track system performance regularly.

Use Variable Frequency Drives (VFDs)

Adjust speed based on demand.

Maintain Piping Systems

Reduce unnecessary friction losses.

Perform Routine Inspection

Check:

• Mechanical seals
• Bearings
• Couplings
• Impellers

Common Mistakes to Avoid

Avoid these frequent issues:

• Oversizing pumps
• Ignoring system resistance
• Operating continuously below design flow
• Selecting pumps using only flow requirements
• Neglecting maintenance schedules

Applications Where Operating Point Is Critical

Operating point analysis is important in:

• Chemical processing
• Water treatment plants
• HVAC systems
• Food processing
• Pharmaceutical production
• Manufacturing industries
• Industrial pumping systems

Conclusion

Understanding what is operating point in pumps is essential for achieving efficient and reliable pump performance.

The operating point is not simply a number—it represents the real working condition where the pump curve and system curve meet.

By selecting the correct pump, maintaining system efficiency, and operating near the Best Efficiency Point (BEP), industries can reduce energy costs, improve reliability, and extend equipment lifespan.

For businesses that depend on continuous pumping performance, monitoring and optimizing operating point should become part of routine maintenance and operational planning.

Frequently Asked Questions

What is operating point in a pump?

Operating point is the actual condition where the pump curve intersects the system curve and determines flow and head.

Why is operating point important?

It helps improve efficiency, reduce energy use, and extend pump life.

Does operating point change?

Yes. Changes in valves, piping resistance, or pump speed can shift the operating point.

What is the difference between operating point and BEP?

Operating point is actual operation, while BEP is the pump’s highest efficiency condition.

Can operating away from the operating point damage a pump?

Yes. It may lead to cavitation, vibration, overheating, and increased maintenance.
